CU-HD1
multifunction defibrillation monitor
▶Patient Monitoring (ECG, SpO2, NIBP, Pacer)
▶Convenient shortcut buttons and switch for using in hospital and emergency
▶Data transmission using Bluetooth
- Exterior View
Dimensions : 326 x 253 x 356mm (W x L x H)
Weight: 5kg or below (without accessories)
- Display
Type : TFT LCD (including backlights)
Screen Size : 152.4 (W) x 91.44 (H) mm
Resolution : 800 x 480 (RGB) pixels
- Defibrillator
Operation Mode : Semi-automatic/Manaul Defibrillation
Output Waveform : e-cube Bipahsic (BTE type)
Output energy : 200 Joules fixed, Manaul 1~200J
R-sync defibrillation : transfer of the defibrillation energy synchronized with the R-wave out of QRS of the ECG signal within 60ms.
- ECG Monitoring Mode
ECG Input : 3-Lead, 5-Lead, 12-Lead
Heart rate display: 30 ~ 300 bpm (Accuracy : 3 bpm)
ECG Size : 5mm/mV, 10mm/mV, 20mm/mV
- Pacer Mode
Pacing Type: (Noninvasive Pacing)
Energy Waveform : Monophasic Rectangular
Pacing Mode : Demand mode, Fixed mode
Energy Magnitude : 5 ~ 200 mA (±5mA)
Pacing Rate : 30~180 ppm (±1.5%)
- SpO2 Pulse Oximetry
Pulse rate : 20~250bpm (±3bpm)
SpO2 value : 1~100% SpO2 (±3digit)
- Noninvasive Blood Pressure (NIBP)
Measuring Method : Oscillometric
Systolic Range
- Adult : 40~260 mmHg
- Pediatric : 40~160 mmHg
- Neonate : 40~130 mmHg
Diastolic Range
- Adult : 20~200 mmHg
- Pediatric : 20~120 mmHg
- Neonate : 20~100 mmHg
- Event Storage
External Storage
ECG Data : Maximum 100 data & Store more than 192 hours of events and ECG data
Voice Data : store more than 8 hours
- Printer
Print Method: Thermal printing
Width: 48mm
Print Rate : 25mm/sed
Printer paper: Width 58mm, Minimum diameter 40mm

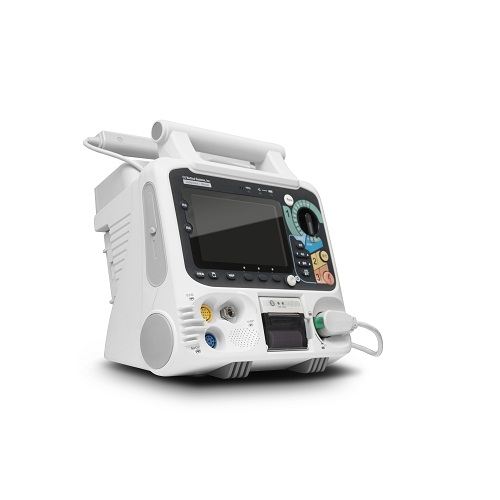

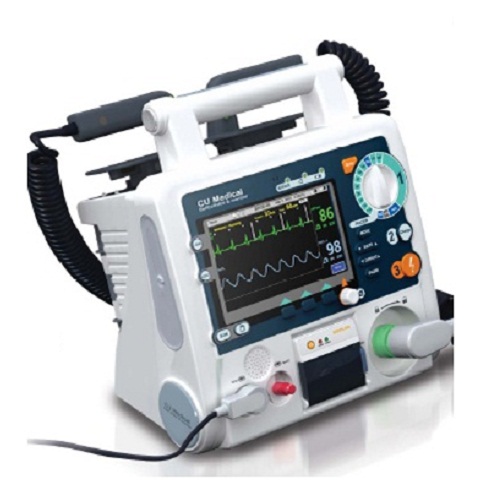

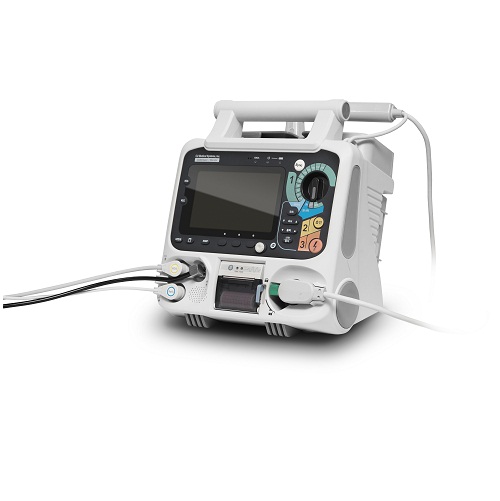

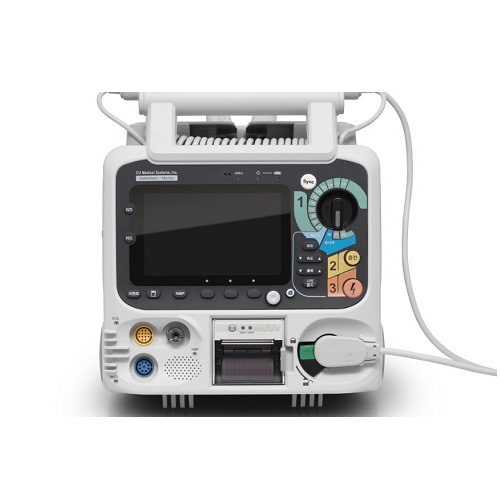

Photos
