TBP9618

Product Details :

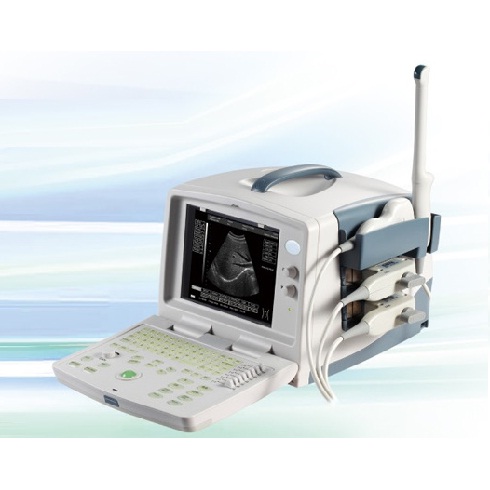

Digital ultrasound diagnostic imaging system 9618 series

Broad-band preamplifier, logarithmic compression, TGC control, dynamic filtrations, edge enhancement, frame relating and linear interpolation are adopted in image processing to assure sharper image and higher resolution. Up-to-date curved probe technology achieves multi-layer sonic matching, broadband and high sensibility.

THI technology

Abundant software packages contribute to more clinical purposes.

Variable focus combination and automatic focus achievable.

6 level TGC

8 kinds of pseudo colors

Silicone gel backlight key board

PAL, video out, 2 USB ports

By portable without PC platform:

Model: TBP-9618

- TECHNICAL SPECIFICATIONS:

Scanning mode: automatic real-time convex electronic scanning.

Probe frequency: 2.0-10.0 MHz (according to probe)

Display modes: B, B+B, B+M, M

Scanning depth: ≥ 170mm

Resolution: lateral resolution ≤2mm

Longitudinal resolution ≤1mm

Geometry position precision: lateral resolution ≤5%

Longitudinal resolution ≤5%

Blind area: ≤3mm

Scanning range: convex 60-110

Grey scales: 256

Scanning line: 512 lines/frame

Frame rate: 30 frame/second

Scan converter: 512*512*8bits

Monitor: 10 inches

Measurement: distance, circumference, area, volume, fetal age, etc.

Power consumption: 70VA

Dimension: 450*310*300 mm

Net weight: ≤ 9.5 kgs (probe included)

Power supply: AC 85V-260V, 49Hz-61Hz

STANDARD CONFIGURATIONS:

Main unit with built-in software packages.

2 transducer sockets and peripheral ports

10 non-interlaced monitor

4-frequncey ( R60/2, 0/3, 5/4, 0/5.0MHz) convex

Transducer

Power cable

Fuse

Coupling gel

Operation manual

OPTIONAL:

4-frequncey ( R20/2, 0/3, 5/4, 0/5.0MHz) micro-convex transducer

4-frequncey ( R40/5, 0/6, 5/7, 5/10.0MHz) linear transducer

4-frequncey ( R13/5, 0/6, 5/7, 5/8.0MHz) transvaginal transducer

4-frequncey ( R40/5, 0/6, 5/7, 5/10.0MHz) endo-rectal transducer

Video printer

BY PORTABLE WITH PC PLATFORM

MODEL: TBP-9618

Full digital technology Embedded PC operation Platform Two USB ports and DICOM3.0 port Cost effective

Excellent image quality abundant software packages silicon gel back-light keyboard

Technical Specifications:

Transducer Type: Linear/convex/micro-convex array

Scan mode: B,2B,B+M, M, 4B

Gray scale: 256

Monitor: 10 non-interlaced

Transducer Frequency: 4-frequency, 2.0-10.0 MHz ( depending on transducer)

Scanning Depth: 0-240 mm (depending on transducer)

Beam forming: full digital beam former (DBF)

Real-time dynamic aperture (RDA)

Dynamic receiving focus (DRF)

Dynamic frequency scanning (DFS)

Tissue Harmonic imaging (THI)

Imaging Pre-processing: frame correlation

Dynamic range

Edge enhancement

Noise restriction

8-segment TGC adjustment

Image optimization (option)

Imaging post-processing: gray map profile

y-correlation

freehand 3D reconstruction (option)

image reverse: 90/180/2707. Positive/negative.

Dynamic range: 0-120Db, 4step switch

Zoom: continuously, PIP (picture in picture)

Cine-loop: 256 frames manually or automatically, 4B or 9B, B/M, or M mode cine loop

Body mark: 43

Permanent storage: internal flash and USB

Display info.: date, time, hospital name, patient name/ID/ age/ sex/ height/ weight, transducer/ frequency. Etc.

Software packages: general, obstetrics, gynecology, cardiology, organ, urology

Measurement and calculation: distance, circumference, area, volume, angle, time, velocity, heart rate, residual urine, etc. automatic measurement and calculation software packages of general, obstetrics, gynecology, organ, cardiology and urology.

Peripheral ports: video, VGA, 2*USB 2.0, RJ45, grounding

Power supplier: 100-260V, 50/60Hz

Net weight: 12kgs

Carton size: 48L *48W*43H – cm

Standard configurations optional items

main unit with built-in software packages

2 transducer sockets and peripheral ports

10 non-interlaced monitor

4-frequency (R60/2.0/3.5/4.0/5.0MHz) convex transducer

Power cable

Grounding cable

Fuse
