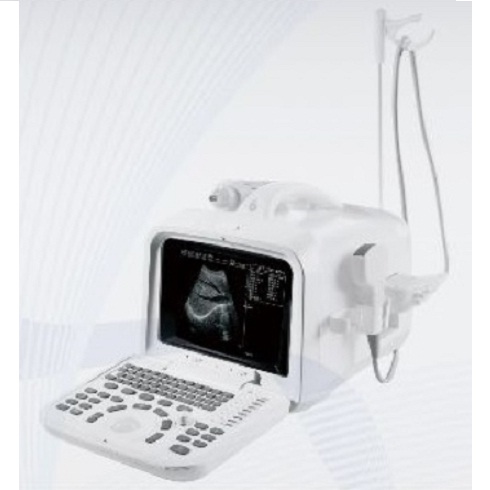

TBP-966

TBP-966





Product Details :

 Full digital  imaging  technology

10  inch  crt  monitor

Double activated probe connectors

100 frames  permanent storage

Double  usb port

Measurement software package of general gynecology  obstetrics

Auto ob report

Data port. Video,s-video,rs-232,usb2-0,vga

System overview

Clinical application

Abdomen

Obstctrics

Gynecology

Urology

Cardiac

Small parts

Vascular

Head(neo-natal)



Imaging modes

B,2b,b ⁄ m,m,4b



Main technology

Dsc (digital scan converter)

Dbf (digita beam forming)

Rda(real-time dynamic aperture)

Dra (dynamic recciving apodization)

Drf(dynamic recciving focusing)

Dfs(dynamic frequency sean)32ch

Transducer  type

Convex array probe

Lincar array  probe

Micro-convex s  probe

Intra-cavity probe



Physical specification

Dimension & weight

Equipment

375mm *305mm*295mm=10.2kg

Package.(wooden carton)

470mm*470mm*500mm*=14.5kg

Monitor

Embedded 10" high resolution b ⁄ w

Progressive-scanning SVGA monitor

Contrast ratio & bright adjustable



Probe port& holder

Probe ports. 2 activated ports

Automatic recognition

Electronic Probe-shift

Probe holders.2 Probe holders



Electrical  power

Voltage. Ac 100v-240v

Frequency. 50⁄ 60hz

Input power. 100va

Operating  environment

Ambient temperature. 10°c-40°c

Relative humidity.35%≤85%

Atmospheric pressure.70kpa-106kpa

Transportation&storage

Ambient temperature.-25°c - 40°c

Relative humidity.10%≤90%

tmospheric pressure.50kpa-106kpa

user interface

control panel

backlit silica-gel(pbt)material

full-scaled qwerty keyboard

independent function keys (volume-adjustable)

smart trackball

intelligent &segment tgc



comments

full screen text input

arrows (four directions)

common-use comments preset by user



body mark

more than  40 body marks

information on monitor

data& time

info of hospital  ⁄  doctor   ⁄ patient

probe model ⁄  frequency

focus no.⁄ dist

frame frequency ⁄  correlation No

scanning angel  ⁄  depth

acoustie power  ⁄   dynamc range



imaging parameter ( adjustable)

pseudo-color display.16

depth.max.240mm

multiplying factor . ×08, ×1.0, ×1.2, × 1.5, ×1.8, ×2.0

m speed. 8 leavels

local zoom . ×2.0

real-time pip magnification

dynamic range. 0-120db

gray level.256

focus.4 scgments focusing

focus No,,position , distance adjustable

image reverse. Up ⁄ down, left ⁄ right,b⁄w

permanent storage.127 frames

cine loop.256 frames

gain control . overall⁄ 8 segments tgc

edge enhancement & gamma correction

frame correction .0-5 frame

frame frequency.max.60 frame ⁄ second



image management

manual & automatic cincoop

image management system

support external usb storge devices
