S-4

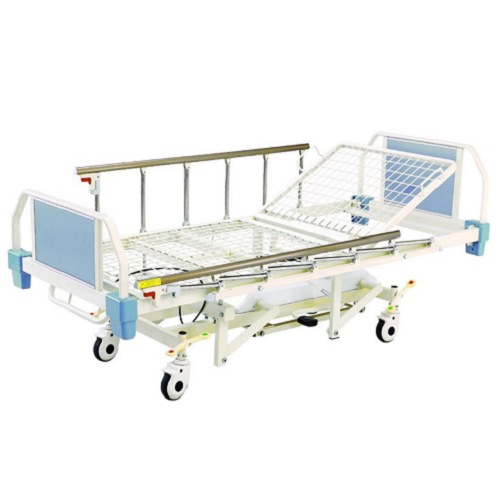

Four function hydraulic bed

Size: 2240mm(L)*980mm(L)*520/810mm (H)

Main feature:

1. Epoxy coated steel bed frame, with mesh wire platform;

2. Aluminium alloy collapsible side rails, detachable flat-tube head /foot board (steel frame with wooden board);

3. Four functions, the details is as follows:

(1) Back rest: 80°, which is controlled by gas spring ;

(2) Height adjusting: from 520mm to 810mm, which is operated by hydraulic pump;

(3)Trendelenburg, 11°, which is controlled by gear mechanic system;

(4) Re-trendelenburg, 11°, which is controlled by gear mechanic system;

4. protecting device in four corners, with IV rod locations

5. Four dia-125mm castors, with central locking system;
