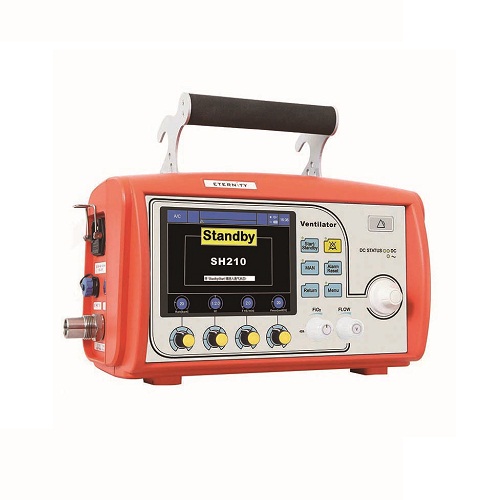

SH210
Portable Emergency Ventilator
Features
- 5.6" TFT color screen
2.Microprocessor controlled system
3.Suitable for adult & pediatric
4.Convenient using
5.Use knob setting
6.PEEP, P-V loop, V-F loop
7.Three-level visual and audible alarm, with concise words describing problems
8.Can be used for emergency and emergency transport and ICU treatment
9.Durable and accurate built-in flow sensor
10.Integrated expiration valve, easy to be sterilized
11.Backup apnea ventilation
12.Auto nebulizer
13.Backup chargeable battery
14.Improve the breathing pattern
15.CE certified
Product details
Specifications
Ventilator setting
1.Patient type: Adult & Pediatric
2.Driven mode: Gas driven electronically controlled
3.Working mode: pressure limited, time cycled, volume controlled
4.Setting: Electronic Knob
5.Ventilation mode: VCV, SIGH, SIMV+VCV, CPAP, SPONT
6.Waveform: P-T, F-T, V-T, P-V Loop, V-F Loop
7.Tidal volume: 0~1500ml
8.Breathing rate: 4~100bpm
9.I:E: 3:1~1:5
10.Trigger sensitivity: -2KPa~PEEP
11.PEEP: 0~2KPa
12.Oxygen: 50~100%
Alarms
1.Tidal volume, Airway pressure, Respiratory rate, Apnea, Power supply failure, Lack of oxygen pressure, Battery low
2.MV: Higher limit and lower limit
3.Pressure: Higher limit and lower limit
4.V: Higher limit, lower limit
5.Rate: Higher limit, lower limit
6.Apnea: Higher limit
7.FiO: Upper limit, lower limit
8.Loudness: 5 rating: 1,2,3,4,5
Environment requirement
1.Power: AC110~240V, 50~60Hz
2.Gas supply: Air & Oxygen pressure: 0.28~0.6MPa, <100L/min
3.Temperature: Operation -18~50°c; Storage -20~55°c
4.Relative humidity: Operation ≤80%, non-condensing; Storage ≤93%, non-condensing
5.Atmospheric pressure: Operation 50~106KPa
Accessories
Expiratory valve
Sampling tube
Flow sensor
Control of tracheal
O pipeline
Air pipeline
Silicone tube
Test lung
Weight and dimension
NW: 6.6kg
GW: 7kg
Dimension: H480xW260xD420mm
