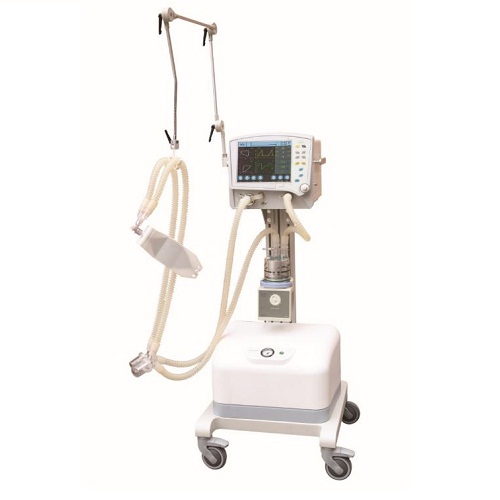

SH300
ICU Ventilator
Features
- 10.4" TFT color screen
- Easy setting by navigator wheel knob and touch key
- Wide choice of ventilation modes including CPAP, APRV, BIPAP
- Flow and pressure trigger
- Static compliance and resistance monitor
- PEEP, P-V loop, V-F loop
- Three-level visual and audible alarm, with concise words describing problems
- Advanced built-in electronic air-oxygen mixing device
- Durable and accurate built-in flow sensor
- Integrated expiration valve, easy to be sterilized
- Backup apnea ventilation
- Auto nebulizer
- Built-in battery
- CE certified
Product details
Specifications
Ventilator setting
Ventilation mode: VCV, PCV, PSV, SIMV-V, SIMV-P, SPONT, CPAP, backup apnea ventilation, APRV, BIPAP (optional)
Tidal volume: 50~1500ml
Breath rate: 1~100bpm
SIMV breath rate: 1~40bpm
Inspiratory time: 0.1~12s
Pause time: 0~4.8s
Pressure trgger sensitivity: (PEEP-20cmH2O)~PEEPcmH2O
Flow trigger sensitivity: 1~20LPM
PSV: 0~70cmH2O
High pressure: 1~80cmH2O
Low pressure: 0~79cmH2O
Waveforms displayed: P-T, F-T, V-T, P-V loop, V-F loop
PEEP/CPAP: 0~50cmH2O
FiO2: 21~100%
Psupp: 0~70cmH2O
Pinsp: 5~70cmH2O
Thigh: 0.1~30s
Tlow: 0.5~30s
Phigh: 5~70cmH2O
Plow: 0~50cmH2O
Alarm silence: ≤120s
Parameters monitored: VTI, VTE, MV, MVspn, f, fspn, FiO2, Ppeak, Pmean, Pplat, PEEP, Pmin, Compliance, Resistance
Interface: RS232, VGA
Assist functions
Freeze: Freeze current screen and suspend real-time data
Insp hold: 15s max
Exp hold: 15s max
O2 suction: 100% O2 for 2 munites
Manual insp
Alarms
MV-upper limit: 0~99L
MV-lower limit: 0~99L
Paw-upper limit: 0.1~8KPa
Paw-lower limit: 0~7.9KPa
VTE-upper limit: 0.05~2.00L, OFF
Rate-upper limit: 0~100bpm
Rate-low limit: 0~99bpm
Tapnea: 15~60s
FiO2-upper limit: 21~100%
FiO2-lower limit: 21~99%
Main failure, Battery low, Battery discharged, Air/O2 supply down, Circuit occlusion
Power and environmental
Power: AC110~240V, 50~60Hz, DC 12V, 4.4AH
Power comsumption: 65VA
Driven mode: Pneumatically driven, electronically controlled
Air/O2 supply: Pressure 0.28~0.6MPa >50L/min
Temperature: Operation 10~40°c; Storage -20~55°c
Relative humidity: Operation ≤80%, non-condensing; Storage ≤93%, non-condensing
Atmospheric pressure: Operation 70~106KPa
Order information
Option: Compressor
Accessories: Power cord, Gas pipeline, Patient circuit, Face mask, Humidifier, Support arm
