Spirolab

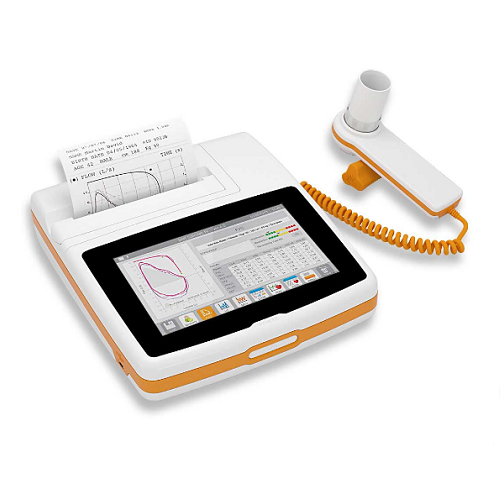

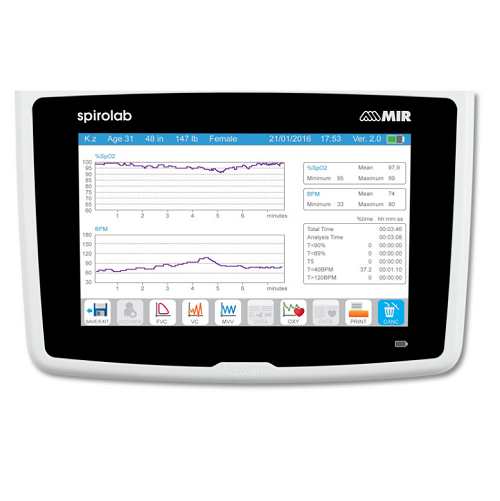

New Spirolab®

7 inch Touchscreen

All in one portable Desktop Spirometer
with Oximetry option

Fast and intuitive for modern professionals

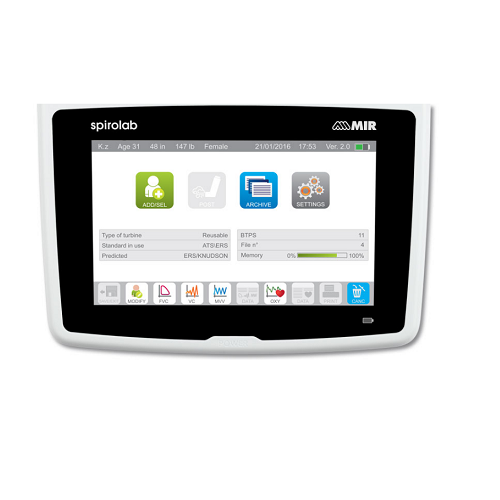

Each function can be easily activated by a simple touch on the bar menu

Stand Alone Mode

Spirometry test:

FVC, VC, MVV, PRE/POST Bronchodilator comparison with a wide range of selectable parameters.

 Paedriatric Incentive for Spirometry

 Fast and silent built-in printer

with customizable printout format.

 Colour screen

Touchscreen 7 inches TFT display

 Database up to 10,000 Spirometry tests

or 900 hours of Oximetry recording coupled with powerful and flexible search services.

 Optional function available:

Oximeter with adult or paediatric finger probe.

 Long life Rechargeable Battery.

 Available with both DISPOSABLE or REUSABLE turbine flowmeter.

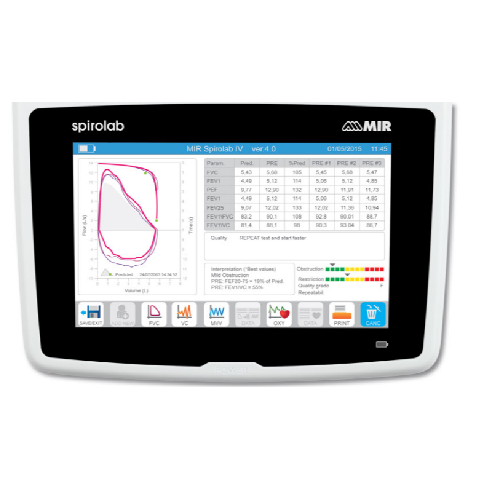

PC based mode, using WinspiroPRO®

 Bluetooth® 2.1 and USB Connectivity

Wireless or via cable Real Time test directly on your PC.

 Winspiro PRO® PC software

provides Real Time Flow/Volume and Volume/Time curves with PRE/POST Bronchodilator comparison on your PC. Includes free online updates.

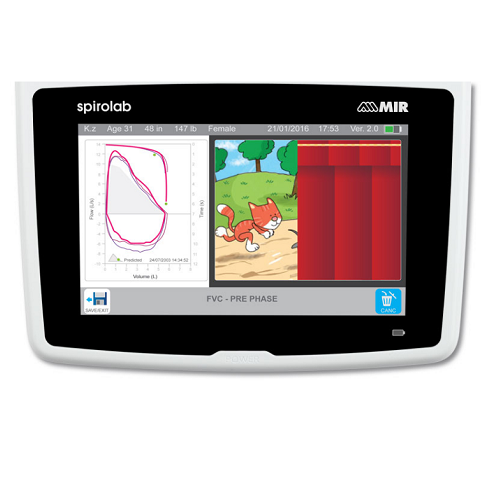

 Paediatric Incentive for Spirometry

with wide choice of pictures and animations.

 Spirometry test after drug adminitration

Bronchodilator Reversibility, Bronchial Challenge with FEV1-response curve with protocols for both Methacholine and Mannitol.

 Quanjer 2012-GLI Predicted values

with LLN and Z-score

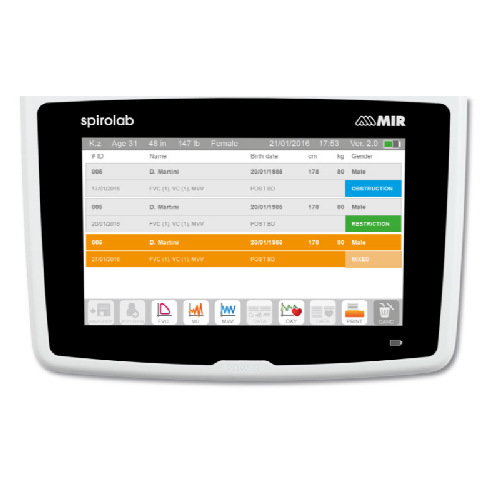

 Patient Trend Charts for easy follow-up

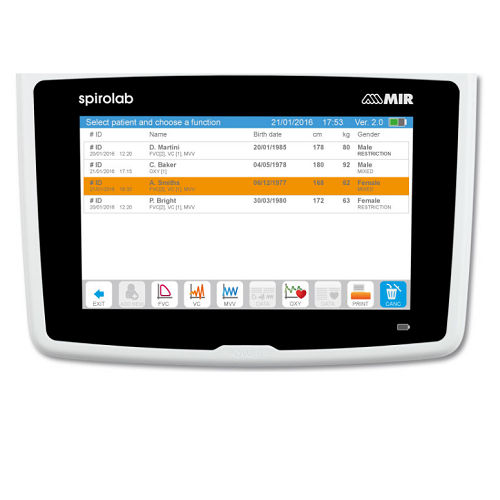

Search engine for instant access to database. Wide choice of communication protocols for integration with EMR.

Measured Parameters
(PC Based and Stand Alone)

Spirometry Parameters

FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25–75, FEF75–85, Lung Age, Extrapolated Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/ FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).

Oxymetry parameters (Optional)

%SpO2 and Pulse Rate (Min, Max, Average), Test duration, Total SpO2 Events, T90% (SpO2 time ≤89%), T89% (SpO2 time ≤88%), T40 (Bradycardia duration with Pulse Rate <40 bpm="" t120="" tachycardia="" duration="" with="" pulse="" rate="">120 BPM).
