JAY-5

Model

JAY-5

Flow rate

0-5L/min

Purity

93±3%

Outlet Pressure (Mpa)

0.04-0.07

Sound Level

≤50db

Power

AC230V, 50Hz

Power Consumption

≤530W

LCD display

Operating pressure, Present Working Time,
Accumulating Time, presetting Time from 10mins to 40hours

Alarm

Power failure alarm, High&Low pressure alarm
Temperature alarm, Low purity alarm.

Net Weight

25Kgs

Size (mm)

365×375×600mm

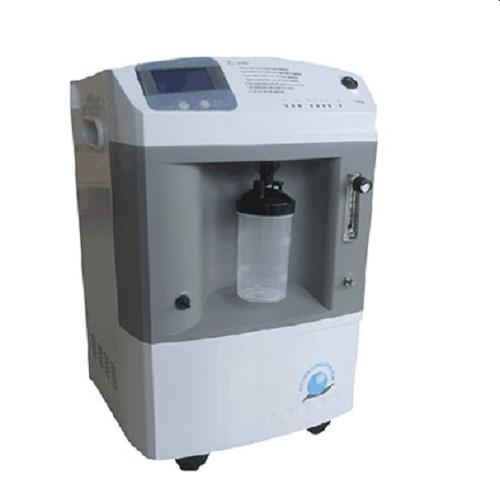

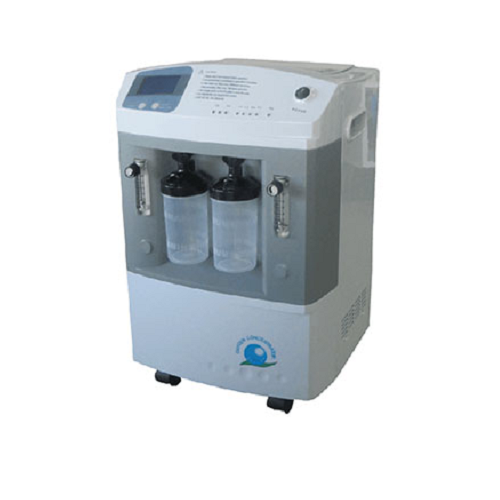

The JAY-5 0-5L/Min oxygen concentrator, is energy-saving and safe to use. The optional dual-flow configuration allows two users to inhale oxygen at the same time by sharing one machine.
It can be used for adjuvant treatment for respiratory system diseases, cardio vascular and cerebral vascular system diseases, chronic obstructive pulmonary disease, carbon monoxide poisoning and other hypoxia diseases. It is suitable for clinics, community hospitals, township health clinics, etc.
Which can support for 24*365 operation.
