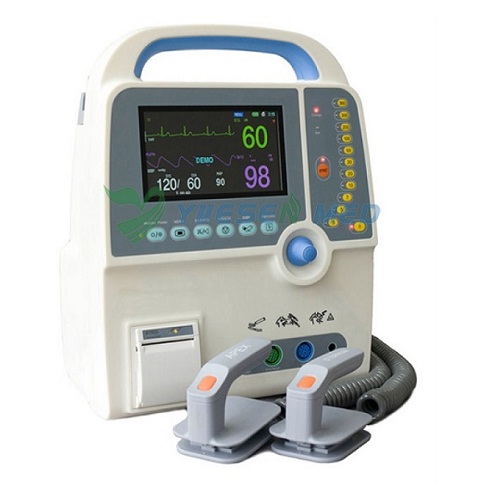

Main unit: Portable Dimensions:L320xW205xH410 Weight:9.8kg Technical specifications DEFIBRILLATOR. (1) Defibrillator type Manual, Synchronized, Asynchronized, (2) Out put waveform Monophasic technology (3) Energy accuracy ∠+1% (4) Energy selection 0,3,5,7,10,20,30,50,100,200,300,360 joule(nominal at a resistance of 50) (5) Charging time Maximum 8 seconds to 360 Joules (6) Standard Adult/Pediatric Paddles Reusable extermal adult paddles(pediatric paddles integrated) .Power requirements. (a) AC Power supply 110V, 60 Hz /220V,50 Hz (b) Vehicle Voltage DC 12V Internal Battery Backup (1) Battery type Rechargeable lead-acid battery (2) Charging time Time-Minimum of 4 hours for full charging (3) Battery charging During AC Power Supply operation of the device. (4) Charging /Low Battery Indication Red LED (5) Battery Capacity 100% of the battery will provide 120 mins of monitoring; and 30 discharges at 360 joules. Display -LED Dimensions 7’diagonal {155mm*88mm} -Type High resolution true-color graphic LED -Resolution 480X234 ECG ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1~V6, GND S-T segment analysis: -2.0~2.0mv Arrhythmia analysis: yes Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation Respiration Measurement method: Thoracic impedance NIBP Working mode: Manual/Automatic/stat(5 minutes) Method: Automatic oscillation Cuff type: standard Adult; optional Pediatric/Neonatal Temperature Measurement range 20~45℃ Resolution 0.1℃ Pulse Oximetry(spO2) Display :spo2 value, pulse histogram, waveform, Pulse Range: 0~99%for adult, pediatric and neonatal patients Probe :standard adult finger clip optional pediatric Y-type clip and neonatal wrap Pulse range Pulse range: 0-255bpm Standard parameter & configuration ECG/ RESP,/SPO2,/TEMP,/PR,/NIBP/DEFIBRILLATOR |
