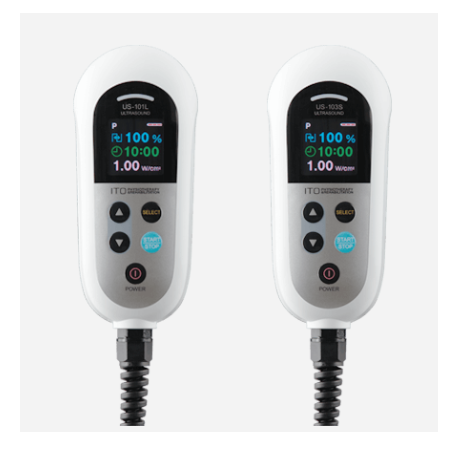

US-101L / US-103S
product brief
- PORTABILITY
- ONE-HAND OPERATION
- WATERPROOF
- LOW BNR
- RECHARGEABLE BATTERY AVAILABLE (Optional)
-
Specifications
Power supply AC 100-240 V, 50/60 Hz or Rechargeable Battery (optional) Intensity (max.) Continuous: 2.00 W/cm2 ± 20%
Pulsed: 3.00 W/cm2 ± 20%Ultrasound frequency - US-101L
- 1.0 MHz ± 10%
- US-103S
- 3.0 MHz ± 10%
Duty cycles 5％, 10%, 20%, 30%, 40%, 50%, 100% Pre-programmed parameters (modifiable) 5 BNR US Probe head (IEC Standards) - US-101L
- 3.5 ± 30%
- US-103S
- 2.4 ± 30%
ERA US Probe head (IEC Standards) - US-101L
- 5.0 cm2 ± 20%
- US-103S
- 0.5 cm2 ± 20%
Timer 30 min. ± 1 min. Safety class according to IEC 60601-1 Class I / Internaly powered equipment, Type BF Dimensions - US-101L
- 134 (H) x 59 (W) x 55 (D) mm
- US-103S
- 134 (H) x 59 (W) x 60.5 (D) mm
Weight - US-101L
- 200 g
- US-103S
- 190 g

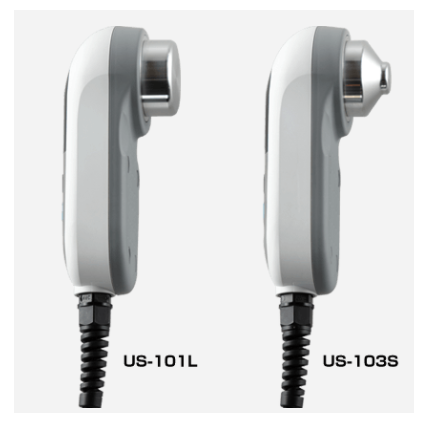

Probe head - US-101L
- 11 cm2
- US-103S
- 2 cm2
