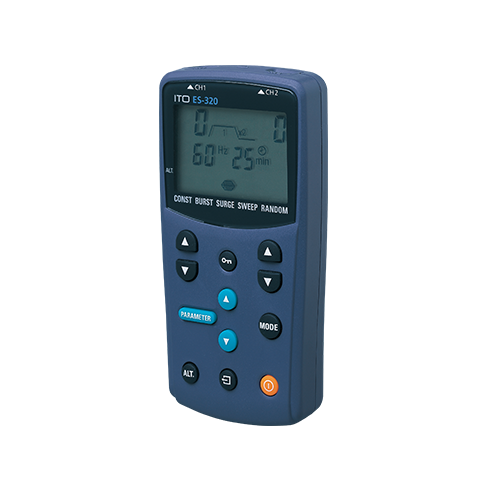

ES-320

Features

• Saves in memory the cumulative number of treatments and duration of treatment (PAT.P)
• Stores and protects programs formulated for each individual patient (PAT.P) — parameters programmed for specific patients are stored in dedicated memory for protection
• Comes with four separate free program memories (1 for each mode)
• Large, easy-to-read LCD monitor (46mm x 31mm)
• Color-coded, easy-to-use operational keys
• Stimulus-habituation prevention mode — Sweep and Random (sequential) modes
• Self-test — checks ROM/RAM when the power is turned on
• In surge (EMS) mode, operators can choose either co-cont or alternate-cont
• Auto power off — power turns off after 3 minutes unused
• Key lock — all keys except the lock key and power source key are locked
• Low battery warning

• Specifications

  Power supply	DC 4.5 V, 3 x LR6 (AA) alkaline battery
  Number of channels	2
  Current amplitude (max.)	90 mA (peak)
  Output mode	Constant, Burst, Surge (EMS), Sweep, Random
  Safety class according to IEC 60601-1	Internally powered equipment, Type BF
  Dimensions	61 (W) x 37 (D) x 122 (H) mm
  Weight	120 g（without batteries）
