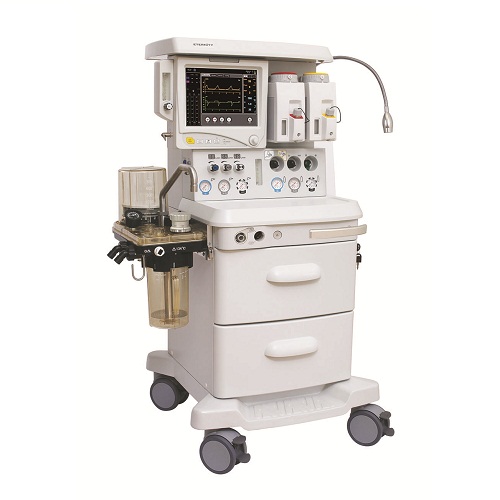

AM852
Advanced anesthesia machine Suitable for neonate, pediatric & adult
Features:
- Advanced anesthesia machine with high technology,support a variety of patients;
- Suitable for neonate, pediatric & adult;
- Meet low flow requirement by multi parameter monitoring;
- Electronic flowmeter of high accuracy and intuitive displaying;
- Integrated high temperature sterilization CO2 absorber system,excellent ergonomic breathing circuit,with heating and bypass function;
- Safe & reliable gas system
- CE marked, meet EU clinical requirement
Product details
Technical Specification
Physical & Environmental Specification
. Dimensions (WxHxD): 600x1368x740mm
. Weight: 130kg
. Storage temperature: -10~+60
. Working temperature: +10~+40
. Storage humidity: 15%~90%
Electrical Specification
. Mains: 100-240VA C, 50-60Hz
. Battery: 24VDC, minimum120min
Pneumatic Specification
. Gas supply: AIR, O2, N2O: 0.28-0.6Mpa
. Flowmeters: Electronic flowmeter
.Gas supply: O2 deficiency alarm
.Hypoxic guard system
. O2flush: 25-75L/min
. Working mode: Closed, Semi-closed, Semi-open
. Driven mode: Pneumatically driven and electronically controlled
. Operating mode: Man. / Vent.
Ventilator Specification
. Patient type: Adult, pediatric & neonate
. Ventilation modes: VCV,PSV,PCV,SIMV,Standby, Manual
. Setting: Touch key & navigator wheel knob&touch screen
. Tidal volume: 20-1500ml
. Ventilation frequency: 0-100bmp
. I:E ratio: 10:1-1:10
. Pressure control: 5-70cmH2O
. Ppeep: 0-40cmH2O
. Inspiratory plateau: off, 0-60%Ti
. Trigger sensitivity: Flow and pressure trigger
. High pressure: 20-100cmH2O
. Low pressure: 0-20cmH2O
. Monitoring: Display: 12TFT color touch screen
Pressure: Paw, Ppeak, Pplat, Pmean
Volume: MV, Vt
Flowmeter
Vaporizer agent
Breath rate
Gas: FiO2
Compliance
Graph display: P-T, F-T, V-T waveforms & P-V, F-V loops. Waveform frozen
. Alarm: Pressure: Paw, high/low limit
Volumes: TV/MV high/low limit
High limit of breath rate
Gas: FiO2 high/low limit
Apnea
Airway pressure high
High PEEP level
Power failure
Battery low
Low O2 supply pressure
Vaporizer
. Support 2 vaporizer (Selectatec compatible)
. Agent type: Halothane, Enflurane, Isoflurane, Sevoflulrane available.
Optional
EtCO2&SpO2 module
AGSS
Anesthetic gas module
