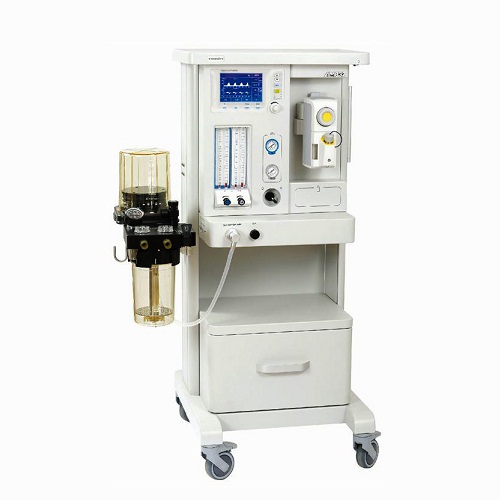

AM832-A
Advanced anesthesia machine Suitable for pediatric & adult
Features
- More accurate
- Safer and more convenient
- CE marked, meet EU clinical requirements
- ISO quality guarantee
- Suitable for adult and pediatric
- One selectatec BE700 vaporizer
- 5.6inch TFT Full-color display
Specifications
Physical and Environmental Specification
Demension: L630xW677xH1365
Storage temperature: -22°c~+55°c
Working temperature: +10°c~+40°c
Storage humidity: ≤93°c
Electronic Specification
Power supply: AC100~240V±10%, 50/60Hz±1%
Power consumption: ≤75VA
Top light
Product details
Pneumatic Specification
- Gas supply: O2/N2O, 0.28MPa~0.6MPa
- Flowmeters:
O2: 0~1L/min, 1~10L/min
N2O: 0~1L/min, 1~10L/min
Four tube flowmeter, 0~10L/min (With interlock protection devices ensuring the
oxygen concerntration > 21%
- O2 flush: 25~75L/min
- Working mode: Closed, Semi-closed, Semi-opened
- APL valve: ≤6KPa
- O2 supply trouble alarm: O2 pressure lower than 0.14MPa
- N2O cut off: O2 pressure lower than 0.1MPa
- Back light for flowmeter
Vaporizer
Support one vaporizers (Selectatec compatible)
Agent type: Sevoflurane, Halothane, Isoflurane available
Flow range: 0.2~15L/min
Concentration: 0~5% (Sevoflurane 0~8%)
Working temerature: 15~35°c
